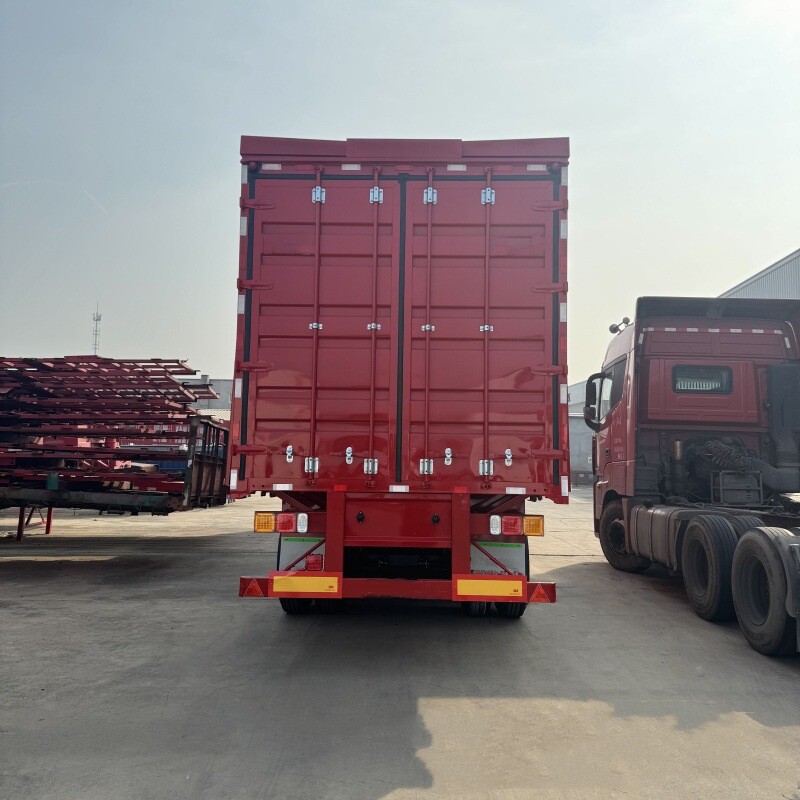

Container Semi-Trailer
A box trailer is a transport vehicle that is modified or manufactured separately on the chassis of a box truck, and is mainly used to transport goods. The compartment is usually closed to form a closed compartment to protect the goods from the outside environment.
+86 15314151913
+86 15314151913
+86 15314151913
info@wuzhoutruck.com
Contact Us

PRODUCT DESCRIPTION

ItemSpecification
Product nameVan type semi trailer
Size13750mm*2550mm*4000mm
Body Sheet

Side wall thickness: 8mm

Body material: wear-resistant steel.

ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
AxleTri-axle
Tire11.00R20
Rim8.5-20
Suspension3 axles CIMC reinforced type
Lead springCIMC  reinforced type, 12 pieces and 16mm thickness.
Braking system2-line air braking system with air tank, WABCO emergency relay valve, braking chambers, and mechanical slack adjusters.
Electrical system24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors.
Shot blastingThe chassis is completely shot-blasted to SA 2.5 grade, and painted with a first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS of INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed.
Landing gearJOST
ChamberDouble type
King pin2"(50mm)or3.5"(90mm)
Spare tire carrierCIMC  standard
ToolboxCIMC  standard

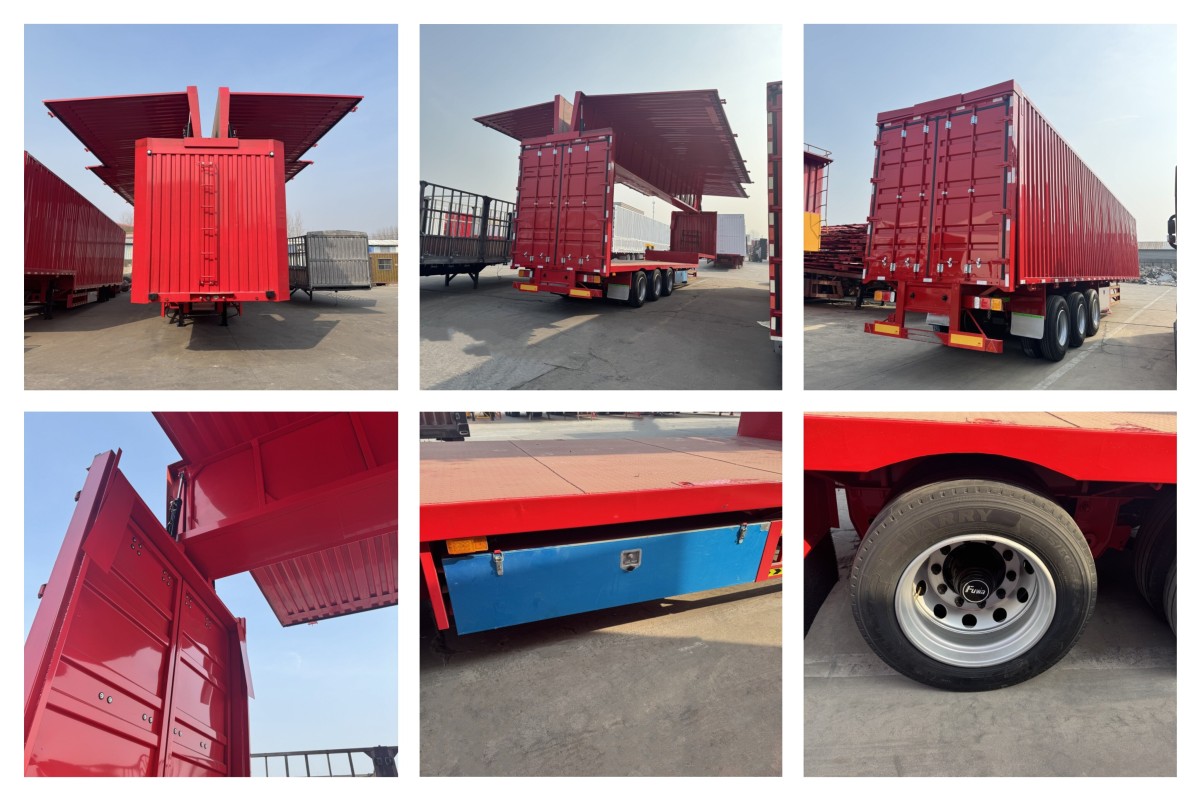

PRODUCT SHOW
