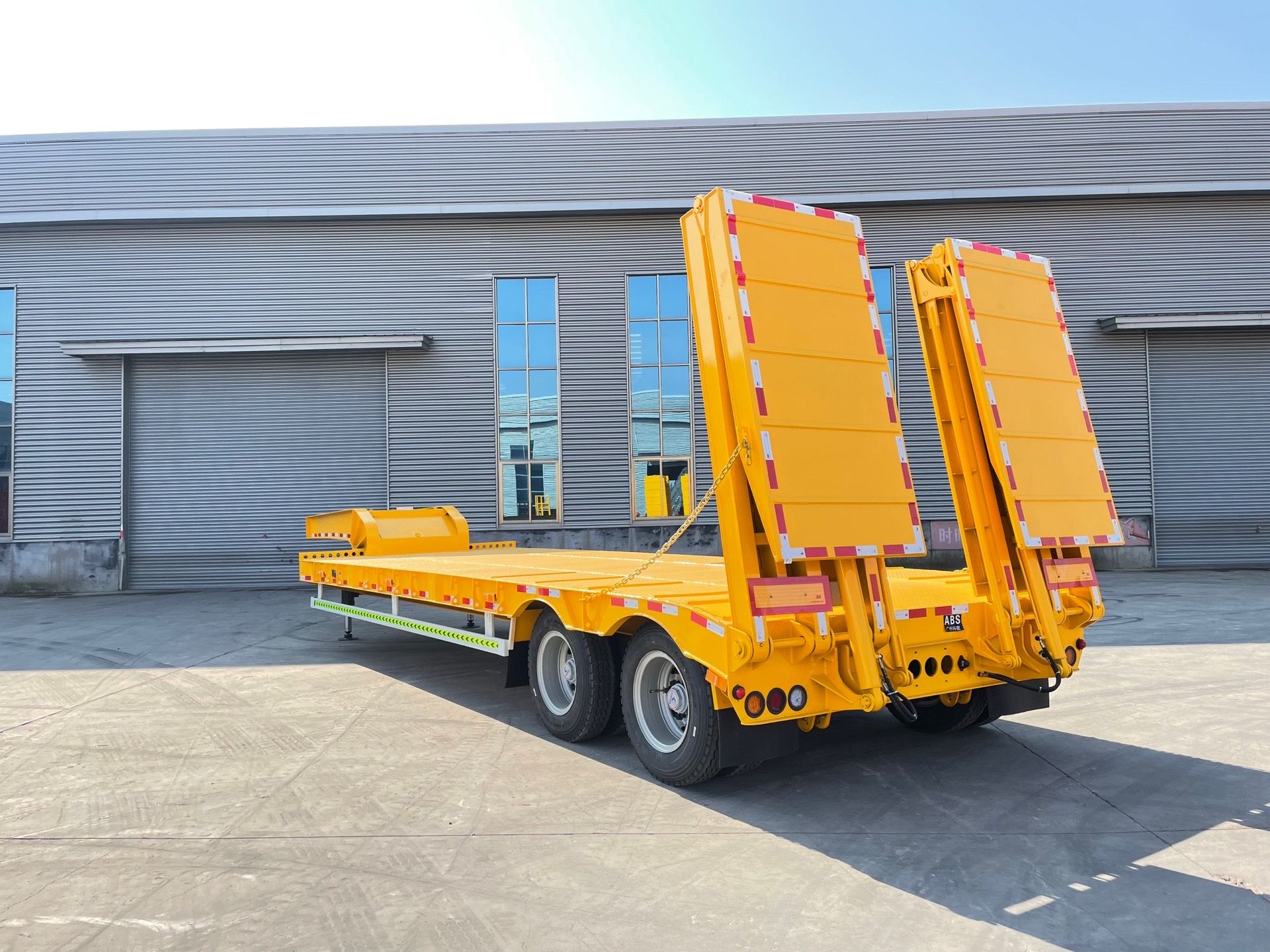

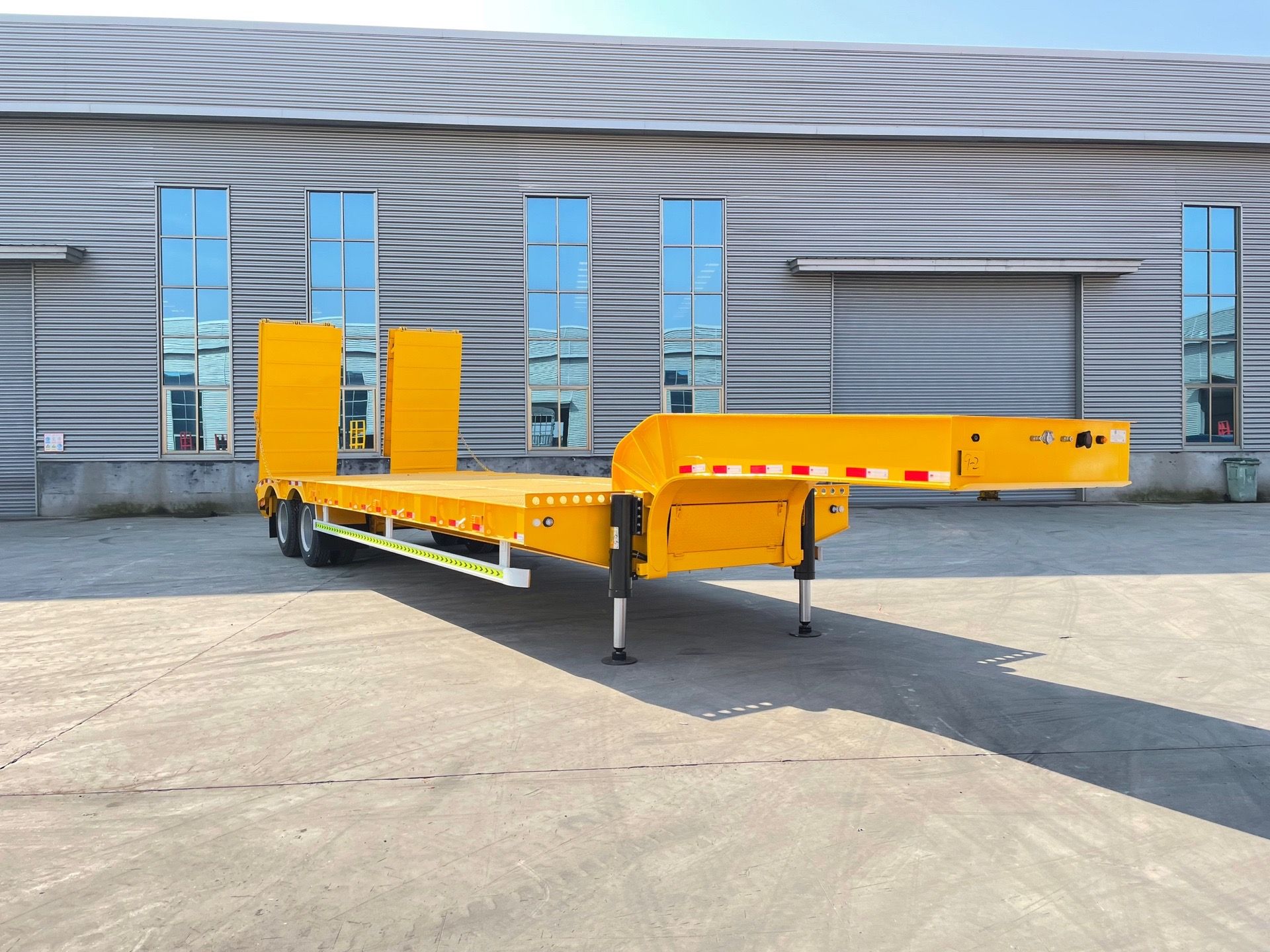

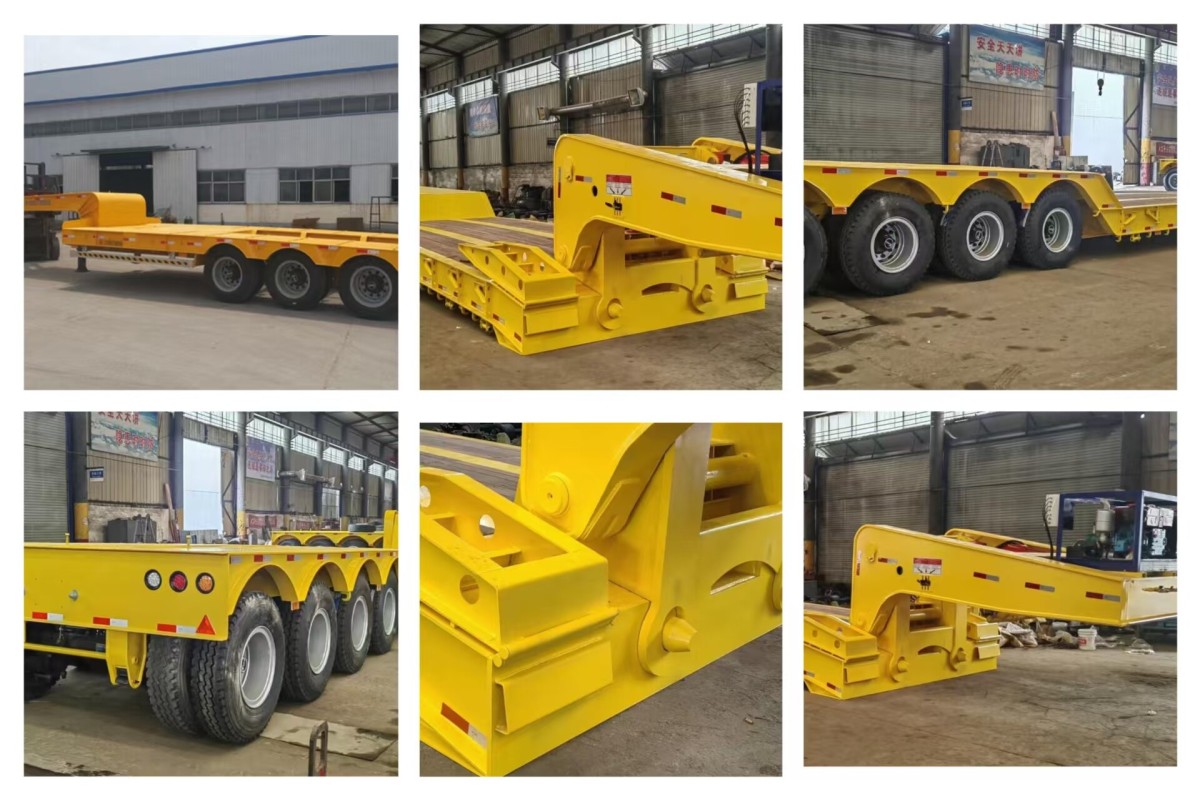

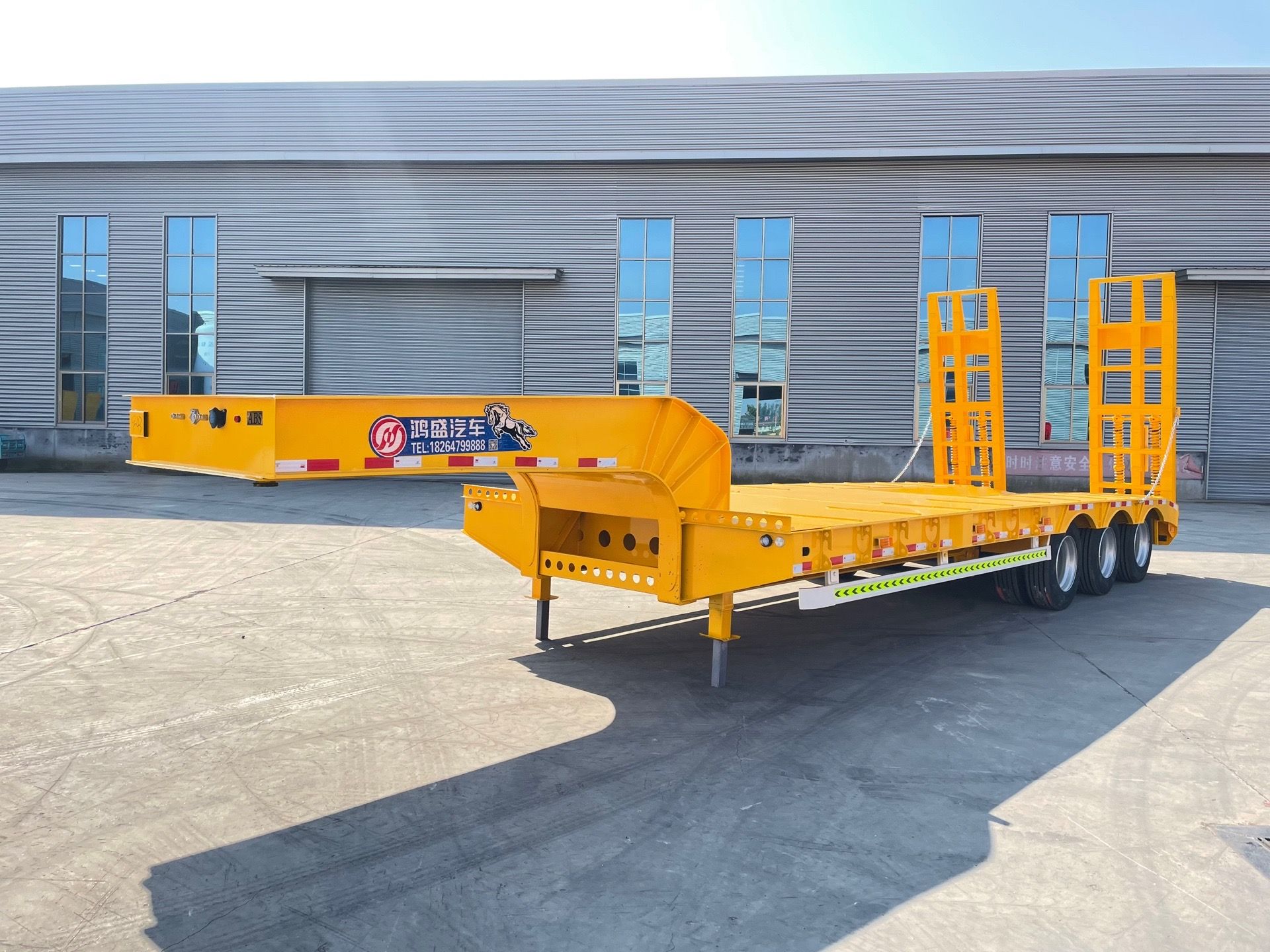

A low bed semi-trailer is a type of heavy cargo vehicle specially designed for transporting heavy vehicles (such as tractors, large buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, freighters, etc.) and other heavy-duty cargo. It is characterized by a low center of gravity, which makes it more capable of transporting high cargo and passing overhead, while also improving stability and safety.
3 4 axles low bed boy deck flatbed container gooseneck
Function
Transport heavy equipment
Size
17500*3000*1250mm
Axle
16 Ton, FUWA brand
Rim
9.0-22.5
Suspension
Mechanical Suspension
Tire
315/80R22.5
Max Payload
60 Ton
Main Beam
T700/Q345 Steel
Chamber
Double type
Material
Steel
Landing gear
28T, two side operation
King pin
(2') 50# or (3.5') 90#
Shot blasting
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.
Electrical system
24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Lead spring
CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness.
Braking system
2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Color
According to customers' requirements and RAL color code.
