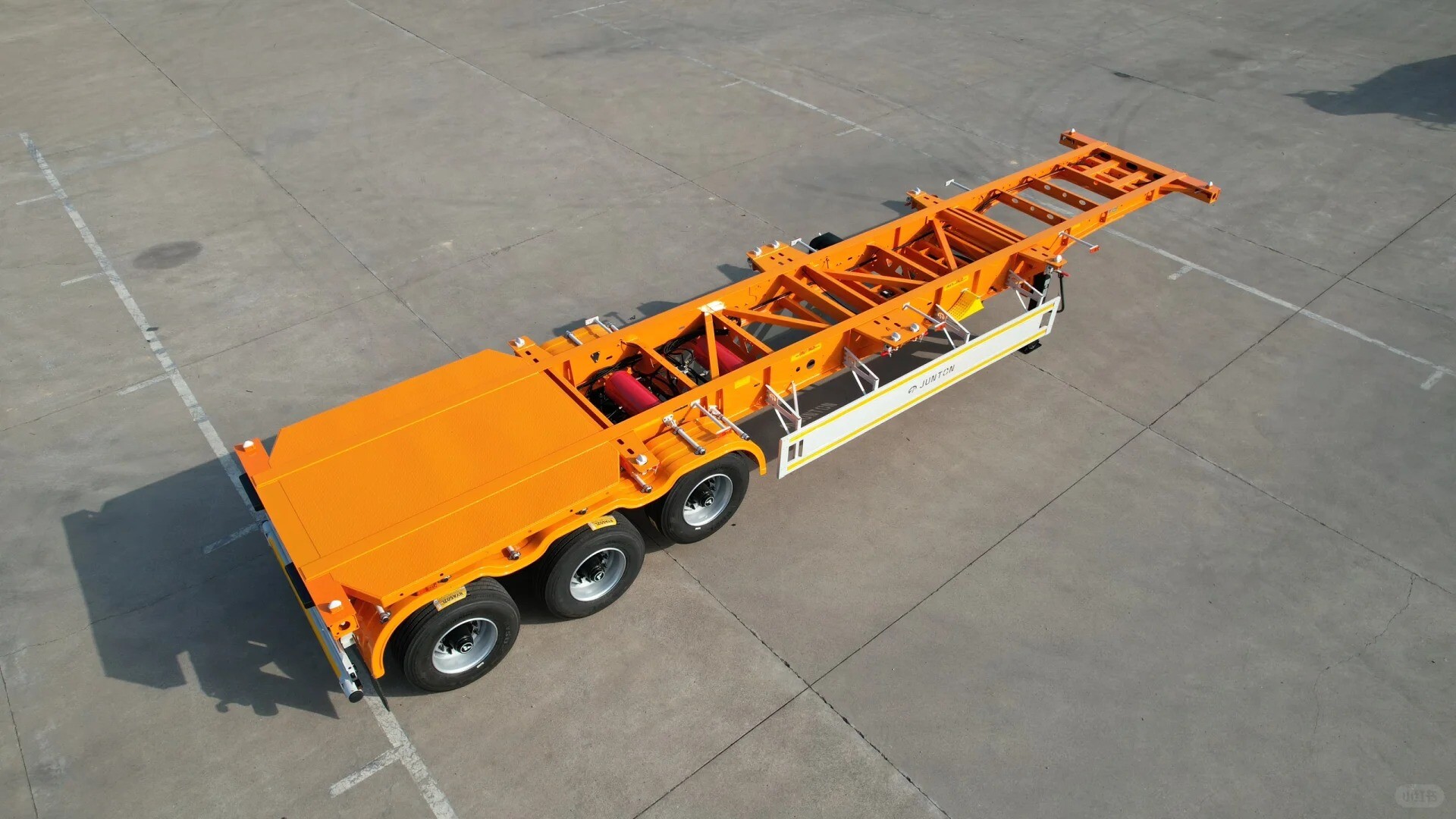

Skeleton Semi-Trailer
Skeleton semi-trailer‌ is a special type of semi-trailer, mainly used to transport special cargo such as containers and dangerous goods tanks. Its structural features include the frame and front and rear axles connected by hinges, which can be quickly separated and connected. The main structure of the skeleton semi-trailer is the frame, which is usually made of high-strength ultra-heavy steel, with a high load-bearing capacity and the ability to adapt to various road conditions.‌
+86 15314151913
+86 15314151913
+86 15314151913
info@wuzhoutruck.com
Contact Us

PRODUCT DESCRIPTION


ItemSpecification
TypeSkeletal semi-trailer
Product name

semi truck trailer with skeletal

FunctionTransport 1*40, 2*20, or 1*20 container.
Size12380 *2500 * 1500mm
Axle13 Ton Fuwa Brand
Rim9.0-22.5
SuspensionMechanical Suspension
Tire12R22.5(10+1)
Max Payload40 Ton
Main BeamT700/Q345 Steel
Twist lock12 units
MaterialSteel
Top flange plate14mm
Web plate6mm
Bottom flange plate16mm
ColorAccording to customers' requirements and RAL color code.

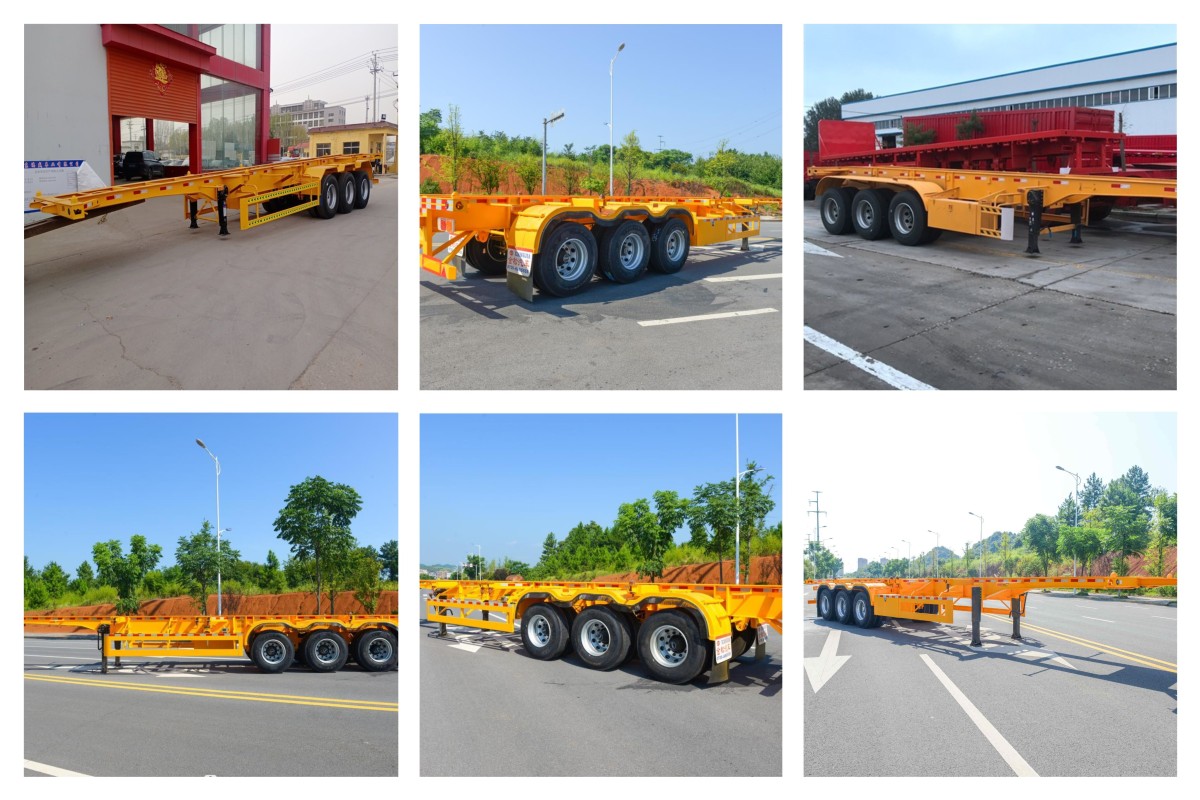

PRODUCT SHOW
